NEW Mundt Air Bearing Stage or Micromaching Tiny Parts

The Air Bearing Stage when embedded into the base of a workstation becomes the heart of thr machine

An Air-Bearing Stage would be selected for micromachining tiney parts with ultra-fine features.

Air-Bearing Stages enable high precision movement with no friction. The Stage "GLIDESe" on a cushion of air that allows smooth controlled motion for PRECISE operations. Air Bearing Stage systems can deliver sub-micron accuracies. The Mundt Air-Bearing Stage when paired with ultra-short pulse lasers provide the ultimate micromachining workstation.

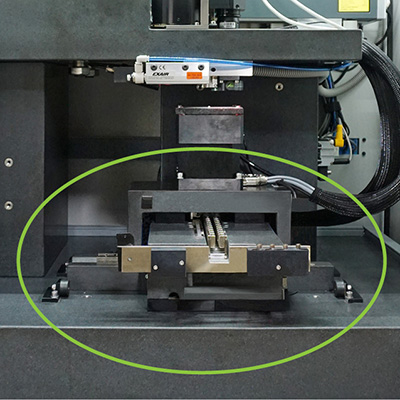

The Air Bearing Stage shown below has been embedded into the base of the machine and becomes "The Heart" of the machine.

Air stage Specifications

200mm x 150mm

Travel X Axis ________________________ 200mm

Travel Y Axis_________________________ 150mm

Maximum Speed X Axis______________ 25 mm/sec

Maximum Speed Y  Axis______________ 25mm/sec

Accuracy X Axis_______________________+/- .5µm

Accuracy Y Axis_______________________+/- .5µm

Positioning Resolution X Axis_________ 5nm

Positioning Resolution Y Axis_________ 5nm
