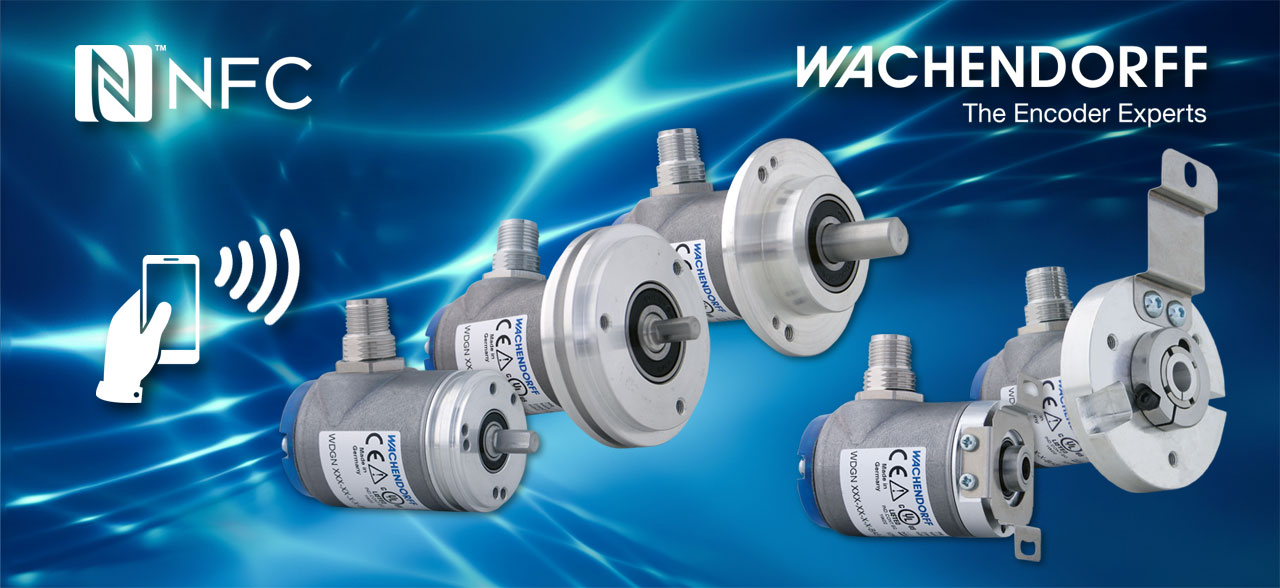

The Configurable Rotary Encoder From Wachendorff Automation: Simple and Secure!

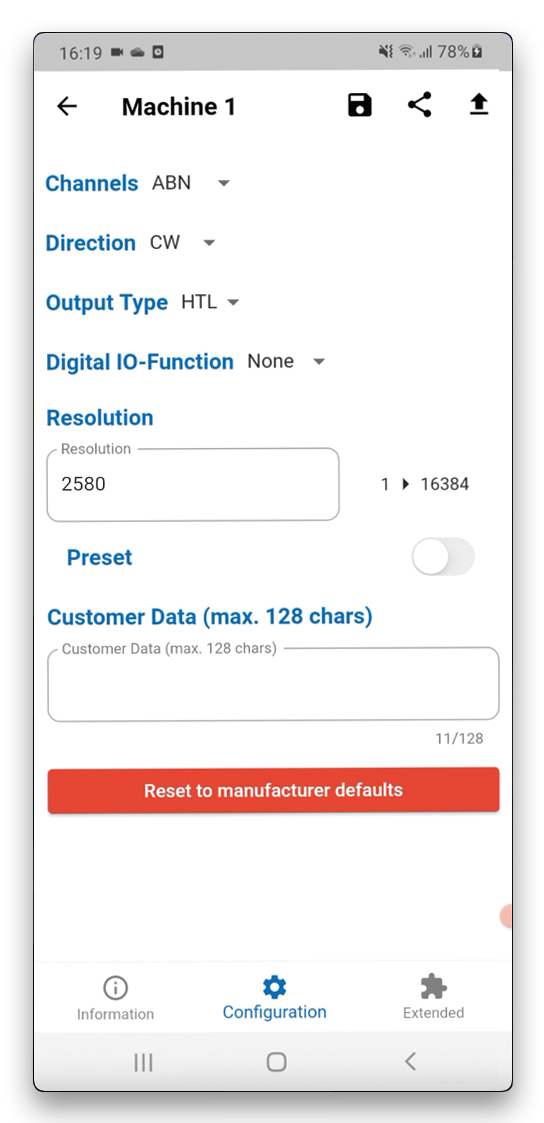

Easy configuration via app
Once created, configurations can be saved under different names, reloaded, and even transferred to other encoders. This allows configuration sets to be used efficiently for different applications. Access is secured via PIN and PUK—a principle familiar to users.

Basic or Advanced – whatever you need
The WDGN series is available in two versions:

• Basic maps the standard channels A, B, N and their inverted signals.
• Advanced allows individual configuration of up to four channels with corresponding inverted outputs – ideal for applications with special requirements, such as different impulse counts per channel.

Safety first
If required, all data transmitted via NFC can be encrypted. Configuration is then only possible with the correct password. After each transmission, the operator receives confirmation.

Benefits for machine builders, end customers and distributors
Machine and system manufacturers benefit from the option of keeping a WDGN encoder type in stock and configuring it individually only when it is picked, assembled or commissioned. End customers and distributors can even set the encoder for the respective application while it is still in its packaging – without a power supply and independent of an Internet connection.

Contactless NFC configuration, maximum data security and the choice between Basic and Advanced make the WDGN a diverse and future-proof component for modern automation systems.

Here you will find further information on the configurable WDGN rotary encoder.

If you have any questions, please contact:
Steffen Negeli
Head of Product Management

About Wachendorff Automation GmbH & Co. KG

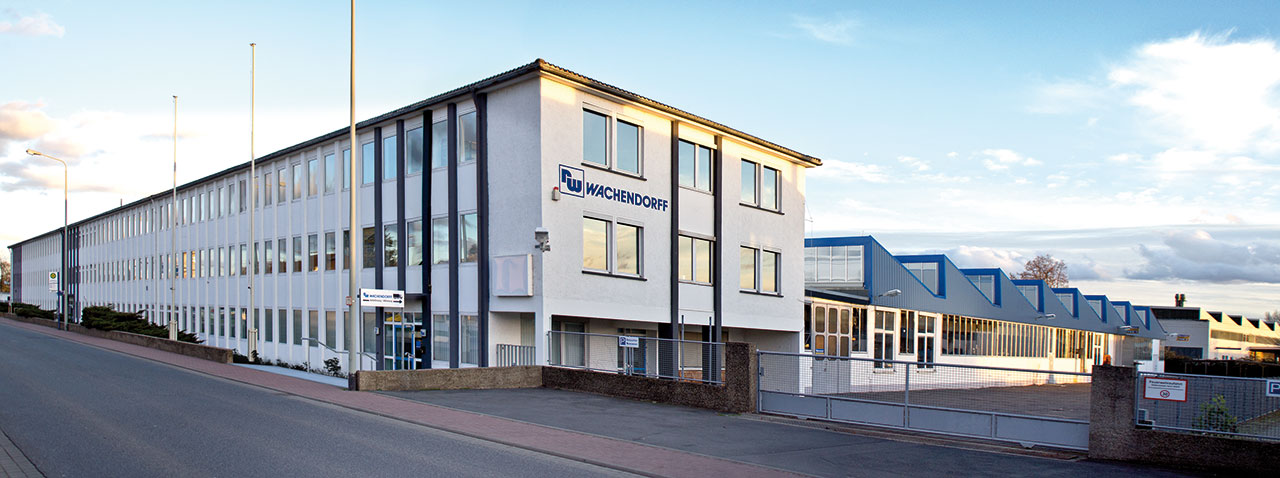

Wachendorff Automation (Geisenheim, Germany) stands for the development and manufacture of innovative encoders, motor feedback and complete measuring systems for use in a wide variety of series applications in mechanical and plant engineering, renewable energies and mobile machines. The focus is on an extensive standard program with numerous options as well as the efficient development of customer-specific solutions.
