Replacing Pneumatic Actuators with Integrated Electric Linear Motors

Pneumatic actuators have long been favoured for their simplicity and responsiveness in industrial automation. However, recent advancements in electric linear actuator technology, such as the ORCA™ Series Smart Linear Motors, offer compelling advantages in repeatability, lower maintenance requirements, programmability, precision, simplicity, and environmental performance. This white paper explores the technical and practical considerations involved in replacing pneumatic systems with modern electric actuators.

Challenges with Pneumatics

1. Repeatability

While pneumatic actuators offer advantages in speed and simplicity, they are inherently limited in applications requiring high repeatability and precision, such as CNC machining, dispensing systems, automated welding systems, and more. Due to the compressible nature of air, even minor fluctuations in supply pressure, flow rate, or ambient temperature can lead to inconsistencies in actuator stroke length, velocity, and force output. System factors such as valve response time, air line length, and the presence of leaks or pressure drops further contribute to positional variance. Unlike electric or servo-driven actuators, which allow for closed-loop control and fine positional accuracy, pneumatic actuators typically operate in open-loop configurations with less consistent cycle-to-cycle performance.

2. Precision

Pneumatic actuators inherently lack the precision required for high-accuracy applications due to the physical properties of compressed air and the limitations of system control. As air is a compressible medium, variations in pressure and temperature can lead to inconsistent force output and actuator motion. Delays in valve actuation, air line length, and internal friction within the cylinder introduce further variability in stroke performance. These factors result in limited positional accuracy, often with tolerances of ±1 mm or more, which is insufficient for tasks that require fine control.

3. High Maintenance Requirements

Multiple components and moving parts introduce more opportunities for wear and tear, and mechanical failure. Compressors are prone to overheating and wear, while control valves can degrade due to frequent switching. Pipes and fittings may leak, or lose pressure over time, and the reservoir is vulnerable to internal corrosion. Without regular maintenance, these issues can lead to reduced system efficiency, and ultimately breakdown.

4. High Total Cost of Ownership

Oftentimes when considering the benefits of pneumatic systems, low cost is seen as a highly advantageous feature of the system. They are oftentimes seen as a cost-competitive solution, as the initial cost for the actuator itself can range from $200-$1,000. However, that does not include installation fees, which can range from $150 - $1,500. In addition to purchasing the unit, and its installation fees, additional costs such as energy consumption to keep the system operating, and regular maintenance/servicing fees.

Electric linear motors as a viable alternative

Recent innovations in electric actuation technology have made them a practical and competitive alternative to pneumatic systems. Modern designs now match or exceed pneumatics in speed and responsiveness, while offering added benefits like programmable motion characteristics, precise control, and near-silent operation. With simplified system integration and real-time feedback capabilities, electric actuators are increasingly suited for dynamic, high-performance applications that previously relied on compressed air.

Technical Comparison of Pneumatics VS Electric Motors

The Advantage of Going Electric

Electric linear actuators offer several key advantages over pneumatic systems, including higher precision, improved repeatability, and reduced maintenance due to the absence of air compression systems and fewer moving parts. They support closed-loop control for accurate positioning, enable quieter operation, and eliminate the need for compressors, valves, and extensive tubing. Electric systems are also easier to integrate into digital control architectures and can provide safer, more compliant motion when paired with the right control strategies, making them ideal for applications that demand consistency, flexibility, and reliability.

1. High Repeatability & Low Maintenance

ORCA electric linear motors offer high repeatability with minimal maintenance requirements. Thanks to precise electromagnetic control and the absence of mechanical transmission components like gears or belts, they deliver consistent motion with position accuracy of less than 1 mm with essentially no drift over any number of cycles. The system’s only moving part is the magnetic stainless steel shaft, lending the only serviceable part to be the plastic bushings on either side of the chassis. Generally, pneumatic actuators can only reach speeds up to 1.5 meters per second, in order to maintain control and wear. Electric actuators do not possess that same limitation, with ORCA motors reaching up to 6.5 meters per second with limited concerns over control and wear.

2. Enhanced Safety Through Compliance, Programmable Force Limits, and Backdrivability

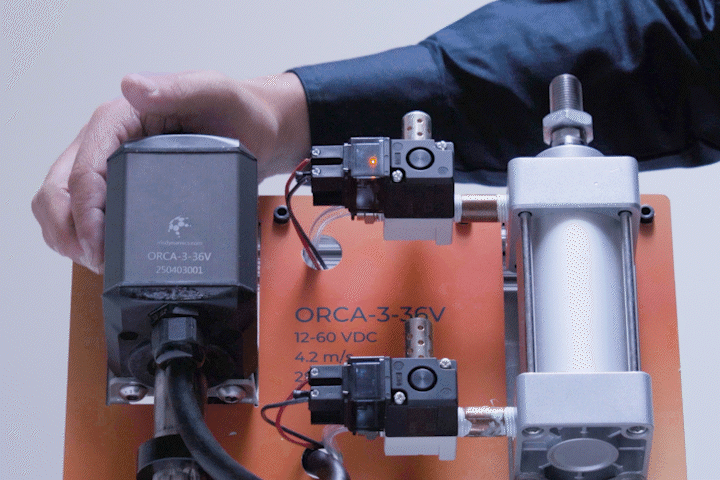

Compliance is essential for safe and effective human-machine interaction. It refers to an actuator’s ability to yield under force, like a spring, allowing for forgiving contact with objects, surfaces, and people. ORCA motors are both backdrivable and compliant. They can yield to external forces while applying force, and their compliance can be finely tuned for the needs of any application. Pneumatic systems also offer some compliance by design. If the user overpowers the amount of force due to air pressure, the cylinder will yield. However, relying on compressed air and rigid control valves still leave room for unpredictably when overloaded. With an ORCA motor, the user can achieve consistent compliance with minimal mechanical complexity through programmable maximum force limits, eliminating the need for external pressure regulators or mechanical compliance tuning. The motor can be configured to yield at a specific threshold (which could even be dynamically programmed), allowing for predictable and safe behaviour during physical interactions.

3. High Precision

Electrical actuators offer significantly higher precision compared to pneumatic systems due to their use of rigid mechanical components and advanced closed-loop control. Equipped with encoders or resolvers, these actuators provide real-time feedback, enabling precise and repeatable positioning. Unlike pneumatic systems, electric actuators maintain consistent tracking regardless of external conditions such as temperature, pressure fluctuations, supply voltages, or external forces like friction. This precise control makes them ideal for applications requiring precise motion control, tight tolerances, and repeatable performance over extended operational cycles.

4. Ease of Integration & Advanced Motion Controls

Unlike pneumatic systems that require multiple external components; compressors, control valves, pressure regulators, and extensive tubing, ORCA electric motors provide a fully integrated solution, where the PID controller, sensor, and driver is baked into the chassis. In addition to the low maintenance requirements, ORCA electric motors offer advanced motion controls including real-time force and position feedback as well as programmable kinematic effects like adjustable damping, virtual springs, and oscillations. Seamless software integration with intuitive GUI-based platforms such as IrisControls allows users to create highly specific and complex motion profiles without the need for mechanical adjustments.

5. Noise & Work Environment

Another important consideration in human-machine applications is the noise pollution generated from actuation systems. Excessive noise can lead to hearing damage, increase stress levels, reduce productivity, and create an unsafe working environment. Typical pneumatic systems operate between 60-90 decibels, as loud as a subway train, whereas the electric ORCA motor operates at 20 decibels, as quiet as a whisper.

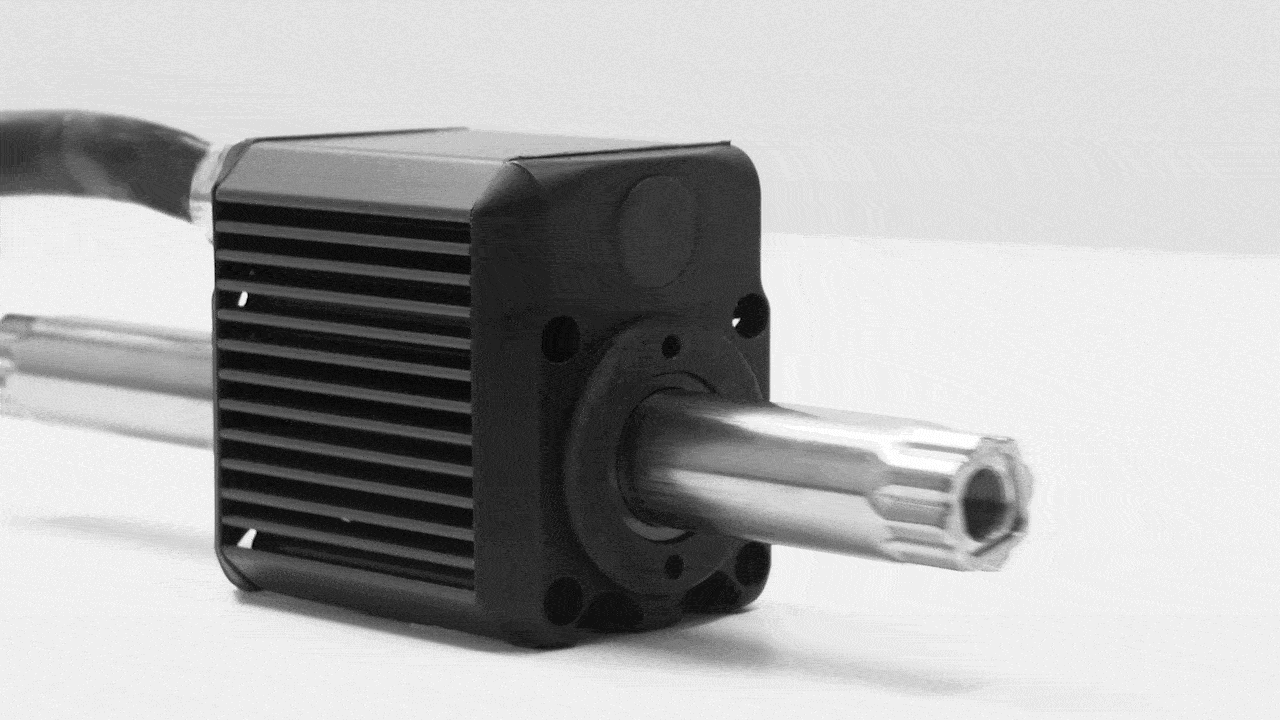

ORCA™ Series Smart linear motors

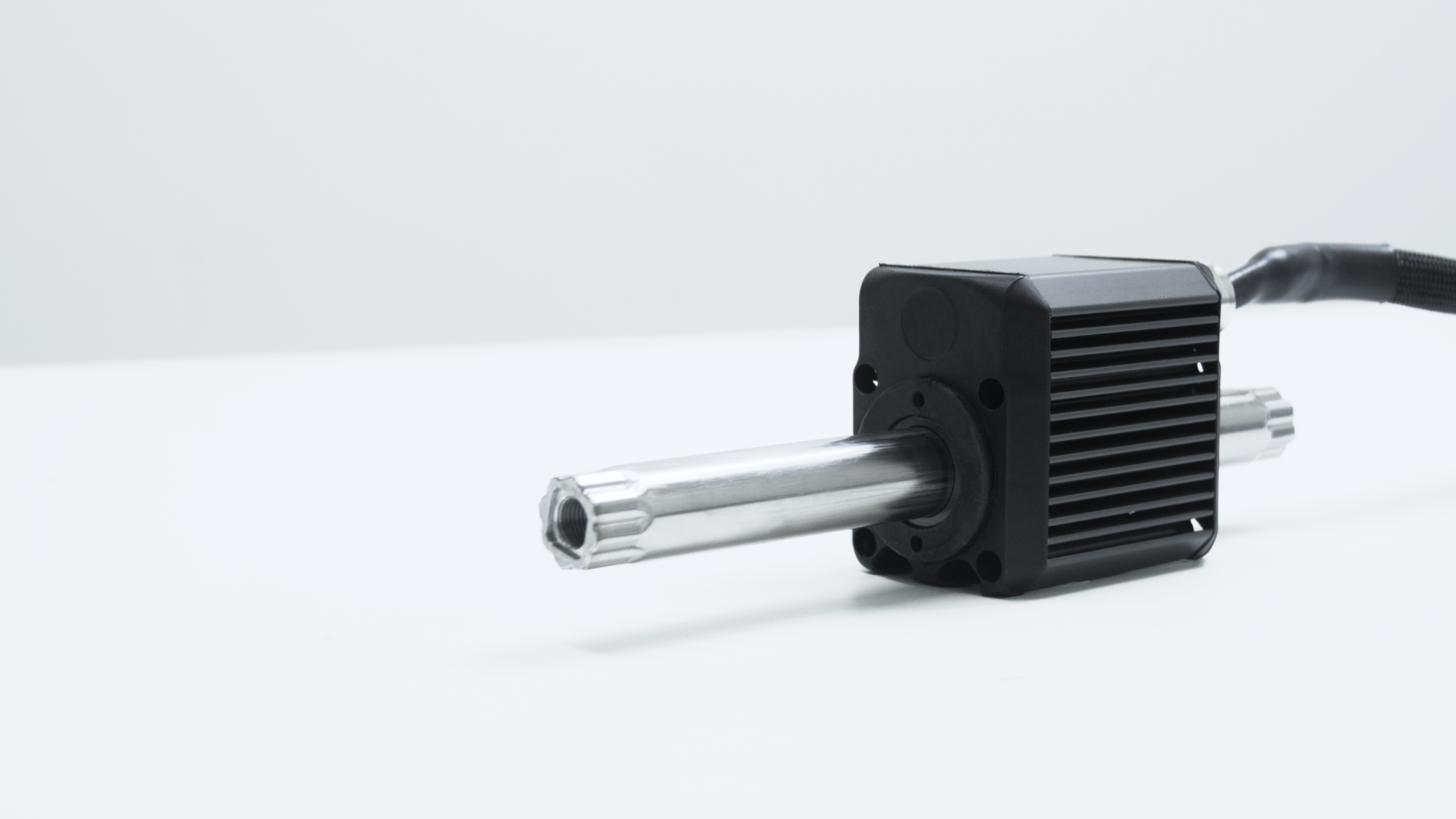

ORCA motors share the fundamental architecture of tubular linear motors: a magnetic shaft driven by surrounding windings to create a virtually contactless, direct-drive mechanism. Like other tubular designs, they offer exceptional speed, quiet operation, and precise control. What sets ORCA motors apart, however, is their fully integrated design, each unit includes onboard sensors (for position, temperature, force, and more), power electronics, and high-speed control logic. This integration simplifies cabling and programming, reduces maintenance demands, and lowers overall system cost.
